Dot Product

The dot product measures alignment: it connects angles, lengths, and projections, and underlies cosine similarity in ML.

published · difficulty 2/5 · 12 min read

Reading map and next steps

Intuition

Build the mental picture first so the rest of the page has something to attach to.

PredictName the object in plain language, then predict what should change.Leave with one reusable mental picture before notation appears.

The dot product answers the question: “How much does one vector point in the direction of another?” Its value depends on both vectors' lengths and their relative direction.

  • If two nonzero arrows point in the same direction, the dot product is positive and equals the product of their lengths.
  • If they’re perpendicular, it’s zero.
  • If they point in opposite directions, it’s negative.

In ML, dot products serve as similarity scores and compare queries with keys in attention. Cosine similarity instead divides the dot product by the product of the vectors' lengths; it is defined only when both vectors are nonzero.

Section prompt

Copy-only prompts — each action copies a page-grounded prompt to your clipboard. Nothing is sent by this site.

Math

Translate the story into symbols, assumptions, and a derivation you can inspect.

InspectTrack the same object through the notation and check each symbol.Leave with the invariant the equations preserve.
Equation 1Inspect equation objectu = (u_1,\ldots,u_n), \qquad v = (v_1,\ldots,v_n).Equation 2Inspect equation objectu \cdot v = \sum_{i=1}^n u_i v_i.Equation 3Inspect equation object\|u\|^2 = u \cdot u = \sum_{i=1}^n u_i^2,

Let u,v∈Rnu,v \in \mathbb{R}^n, with coordinates

u=(u1,…,un),v=(v1,…,vn).u = (u_1,\ldots,u_n), \qquad v = (v_1,\ldots,v_n).

The dot product is the coordinate-wise multiply-and-sum operation

u⋅v=∑i=1nuivi.u \cdot v = \sum_{i=1}^n u_i v_i.

This definition is algebraic, but it is designed to preserve geometry. The squared length of a vector is

∥u∥2=u⋅u=∑i=1nui2,\|u\|^2 = u \cdot u = \sum_{i=1}^n u_i^2,

so ∥u∥=u⋅u\|u\| = \sqrt{u\cdot u}. If θ\theta is the angle between two nonzero vectors, the same operation satisfies

u⋅v=∥u∥ ∥v∥cos⁡θ.u \cdot v = \|u\|\,\|v\|\cos\theta.

You can read this as:

u⋅v∥u∥ ∥v∥=cos⁡θ.\frac{u \cdot v}{\|u\|\,\|v\|} = \cos\theta.

That ratio is cosine similarity. It removes the lengths and keeps only direction, which is why embeddings often use it as a normalized similarity score.

That immediately gives:

  • Orthogonality: u⊥v  ⟺  u⋅v=0u \perp v \iff u\cdot v = 0.
  • Alignment: u⋅v>0u\cdot v > 0 means the angle is acute, while u⋅v<0u\cdot v < 0 means the angle is obtuse.
  • Scaling: (au)⋅v=a(u⋅v)(au)\cdot v = a(u\cdot v), so making one vector twice as long doubles the score.
  • Projection: the component of uu along vv is
proj⁡v(u)=u⋅vv⋅v v(v≠0).\operatorname{proj}_v(u) = \frac{u\cdot v}{v\cdot v} \, v \quad (v \neq 0).

The scalar u⋅vv⋅v\frac{u\cdot v}{v\cdot v} says how many copies of vv fit inside the part of uu that points along vv. The leftover

u⊥=u−proj⁡v(u)u_\perp = u - \operatorname{proj}_v(u)

is perpendicular to vv, because

u⊥⋅v=(u−u⋅vv⋅vv)⋅v=u⋅v−u⋅vv⋅v(v⋅v)=0.u_\perp \cdot v = \left(u - \frac{u\cdot v}{v\cdot v}v\right)\cdot v = u\cdot v - \frac{u\cdot v}{v\cdot v}(v\cdot v) = 0.

In dot-product attention, this same operation appears as q⋅kq\cdot k: the score depends on both vector lengths and their relative direction. With nonzero lengths held fixed, a smaller angle gives a larger score; when key lengths differ, the most aligned key need not receive the largest score.

Section prompt

Copy-only prompts — each action copies a page-grounded prompt to your clipboard. Nothing is sent by this site.

Code

Keep the implementation aligned with the notation so the algorithm is legible.

TraceMatch variables to symbols before reading the implementation.Leave with a runnable witness for the math.
Code witness 1import numpy as np u = np.array([2.0, 1.0]) v = np.array([-1.0, 2.0]) dot = float(u @ v) nu =...python
import numpy as np

u = np.array([2.0, 1.0])
v = np.array([-1.0, 2.0])

dot = float(u @ v)
nu = float(np.linalg.norm(u))
nv = float(np.linalg.norm(v))
cos = dot / (nu * nv)

proj_u_on_v = (dot / float(v @ v)) * v

print("u·v =", dot)
print("cos(theta) =", cos)
print("proj_v(u) =", proj_u_on_v)
print("perp component =", u - proj_u_on_v)
Section prompt

Copy-only prompts — each action copies a page-grounded prompt to your clipboard. Nothing is sent by this site.

Interactive Demo

Use direct manipulation to connect the explanation to a moving system.

StudyExplore the worked calculation, then choose optional practice when you are ready.Keep the same inputs while you inspect what changes and what stays fixed.

Row 0 (A) · unmasked projection.

One query · three sources · one continuous example

A dot product becomes attention

Change the query and follow the same A, B, and C into a mixture. Move at your own pace; no prediction gate is required.

Worked instrument, not a test. These given vectors illustrate one unmasked attention head; they are not learned word meanings.

Change the query · one unmasked row

Shared normalization: m = 1.414; Z = 1.736.

  1. Source Aindex 0
    Dot
    0
    Scaled
    0
    Share
    0.14
    Carry w_Av_A
    [0.28, 0]
  2. Source Bindex 1
    Dot
    2
    Scaled
    1.414
    Share
    0.576
    Carry w_Bv_B
    [0, 1.152]
  3. Source Cindex 2
    Dot
    1
    Scaled
    0.707
    Share
    0.284
    Carry w_Cv_C
    [-0.284, -0.284]

Output o = [-0.004, 0.868]

Compared with q = [2, 1]:

Scores same; shares same; output same.

Worked example, not a test or model run. Given vectors, not learned meanings. Match the query with keys; mix values, not keys. All three sources are allowed in this view.

1 · Match and scaleq · kᵢ → sᵢ = (q · kᵢ) / √2sum(qj * kj for qj, kj in zip(q, k)) / sqrt(2)
2 · Share one denominatorwᵢ = exp(sᵢ − m) / Zexps = [exp(s - max(scores)) for s in scores]weights = [e / sum(exps) for e in exps]
3 · Carry the valuescᵢ = wᵢvᵢ; o = Σᵢ cᵢsum(w * v[j] for w, v in zip(weights, values))

m is the shared maximum scaled score; Z = exp(s_A − m) + exp(s_B − m) + exp(s_C − m). Subtracting the same maximum avoids large exponentials without changing the shares. Each carry is a weighted source value; sum the three contributions coordinate by coordinate for output o.

The reference uses the same current keys and values, with q = [2, 1]. Not every query edit changes the mixture. Solid amber borders mark numerical changes; dashed teal borders mark values unchanged within 1e-12. Labels round to three decimals, not the calculation.

Source A · index 0
k_A = [-1, 2]; v_A = [2, 0]
Source B · index 1
k_B = [1, 0]; v_B = [0, 2]
Source C · index 2
k_C = [0, 1]; v_C = [-1, -1]
Inspect precise numbers and input coordinates

Finite JavaScript numbers before display rounding; −0 is retained where supplied. Tiny allowed shares can underflow to zero; that is not a mask.

q = [2, 1]
A: key=[-1, 2]; value=[2, 0]; dot=0; score=0; share=0.14002924504337802; contribution=[0.28005849008675604, 0]
B: key=[1, 0]; value=[0, 2]; dot=2; score=1.414213562373095; share=0.575975345215362; contribution=[0, 1.151950690430724]
C: key=[0, 1]; value=[-1, -1]; dot=1; score=0.7071067811865475; share=0.28399540974126003; contribution=[-0.28399540974126003, -0.28399540974126003]
m=1.414213562373095; stable denominator=1.736185425829454
output=[-0.00393691965450399, 0.8679552806894639]
Read the full Python witness

This runnable Python witness uses the current controls and the same labels. No NumPy or random inputs are needed.

from math import exp, sqrt

labels = ["A","B","C"]
q = [2,1]
keys = [[-1,2],[1,0],[0,1]]
values = [[2,0],[0,2],[-1,-1]]

d_k = len(q)  # key dimension, NOT number of sources or value width
raw_scores = [sum(qj * kj for qj, kj in zip(q, k)) for k in keys]
scores = [s / sqrt(d_k) for s in raw_scores]
exps = [exp(s - max(scores)) for s in scores]
weights = [e / sum(exps) for e in exps]
output = [sum(w * v[j] for w, v in zip(weights, values))
          for j in range(len(values[0]))]

for label, raw, score, weight in zip(labels, raw_scores, scores, weights):
    print(label, round(raw, 3), round(score, 3), round(weight, 3))
print("output", [round(x, 3) for x in output])

Expected output: [-0.004, 0.868] (rounded to three decimals).

Inspect key and value geometry
Key space: query and source keysQuery q is [2, 1]. Source coordinates and calculations are available in the labelled numeric readouts.xy0k_Ak_Bk_Cq
Key space only. Each grid interval is 1 coordinate unit on both axes. Amber marks the query q you control; ink marks the three fixed keys.
Value space: weighted output and source valuesOutput o is [-0.004, 0.868]. Source coordinates and calculations are available in the labelled numeric readouts.xy0v_Av_Bv_Co
Value space only. Each grid interval is 1 coordinate unit on both axes. Teal marks the mixed output o; the triangle bounds its possible positions.

Step 1 of 4 · Vectors

What does this query have in common with each key?

A, B, and C name the same three sources throughout. Compare q with their keys in key space. Their values are payloads in a different space, not arrows to compare with q.

These are optional inspection controls. The connected scores, shares and mixture stay visible above.

Read the current numbers

Shapes: q and each k have d_k = 2 coordinates. Each v and the output have d_v = 2 coordinates. Equal widths here do not make the spaces identical.

q = [q₁, q₂]; k_A = [−1, 2]; k_B = [1, 0]; k_C = [0, 1]

i names a source; j runs over A, B, C. s is a scaled score, w its share, and o the output. Displayed decimals are rounded; calculations are not.

Keys in key space
SourceKey kq
A[-1, 2][2, 1]
B[1, 0][2, 1]
C[0, 1][2, 1]

Reset example restores the query and first value’s x coordinate only. All other held inputs stay unchanged.

All sources are allowed here; this is not a masked sequence output. Query edits return to row 0; value edits are shared. Other rows and the held mask stay unchanged.

Keep the same Q/K/V; inspect every supplied query row.

Practice, help and export

A study detour counts as consultation for the attempt you leave. Clearing a response or resetting values keeps its help history.

Held example · 3 queries · 3 sources. Started from the A/B/C sequence.

Study history for this visit

These are help exposures, not completion or learning scores. Individual attempts retain their own feedback and help. Reloading the page clears this local history; it does not establish a fresh unaided assessment.

  • Guided attention notebook · worked study · sequence-abc-v1

Start with Guided notebook, the default worked example: use the query qq sliders to follow the same three sources through Vectors → Scores → Weights → Mixture, without a prediction gate. Keys stay fixed; in Mixture, you can also change a value. For the original projection task, open Advanced demonstrations: drag uu and vv, then predict whether the signed projection of uu along vv points with vv, nearly vanishes, or points against vv. Reveal after committing to connect that signed projection with the signs of u⋅vu\cdot v and cos⁡θ\cos\theta.

Section prompt

Copy-only prompts — each action copies a page-grounded prompt to your clipboard. Nothing is sent by this site.

4/4 sections ready

Concept: Dot Product

What is the smallest example that makes Dot Product click without losing the math?

BeforeVector SpacesNow4/4 sections readyTryManipulate one control and predict the visible change.NextScaled Dot-Product Attention & Transformer Layers
Object contextLinear Algebra
StateLinear Algebra
1 source attachedChecking local snapshot
concept:linear-algebra/dot-product
Math3 equation objectsu = (u_1,\ldots,u_n), \qquad v = (v_1,\ldots,v_n).CodeDot Product code witness 1u = np.array([2.0, 1.0])DemoDot Product predictionManipulate one control and predict the visible change.
ConceptLearner lens

Dot Product

What is the smallest example that makes Dot Product click without losing the math?

Mode questionCan I say the mechanism back in one sentence before I reveal anything?

Start with the prediction checkpoint, then compare the reveal to the mental model.

Take this move

Study modes

Keep the object fixed; change the lens.
01PredictCommit before reveal.02ExplainName the invariant.03Ground1 source link nearby.04ExperimentChange one knob.05CarrySave the next question.

Route back through the notebook

Carry the same object through intuition, math, code, and demo.

4/4 sections ready
Carry inVector Spaces

Bring the mental model from Vector Spaces; this page will reuse it instead of restarting from zero.

Work hereDot Product

The dot product measures alignment: it connects angles, lengths, and projections, and underlies cosine similarity in ML.

Carry outScaled Dot-Product Attention & Transformer Layers

The next edge should feel earned: use the demo prediction here before following Scaled Dot-Product Attention & Transformer Layers.

Test the linkManipulate one control and predict the visible change.Then continue to Scaled Dot-Product Attention & Transformer Layers

After The First Pass

Turn the concept into an inspected object.

The lower panels are one second act: keep the object fixed, inspect it visually, check source boundaries, practice transfer, then attach the research question.
ConceptDot ProductLinear Algebra
01MechanismInspect motionSee how the idea changes form before adding more explanation.02VisualChoose a cueBind one visible mark to one mathematical role.03SourcesCheck boundary1 source link attached to the object.04ClaimAudit evidenceTreat the page claim as something to verify.05PracticeAttempt transferWrite before feedback so the model has something to repair.06RoomAsk groundedAttach the question to the same exact object.

Mechanism Storyboard

See the idea move before the page explains it

The dot product measures alignment: it connects angles, lengths, and projections, and underlies cosine similarity in ML.

Demo notes open01 / Intuition

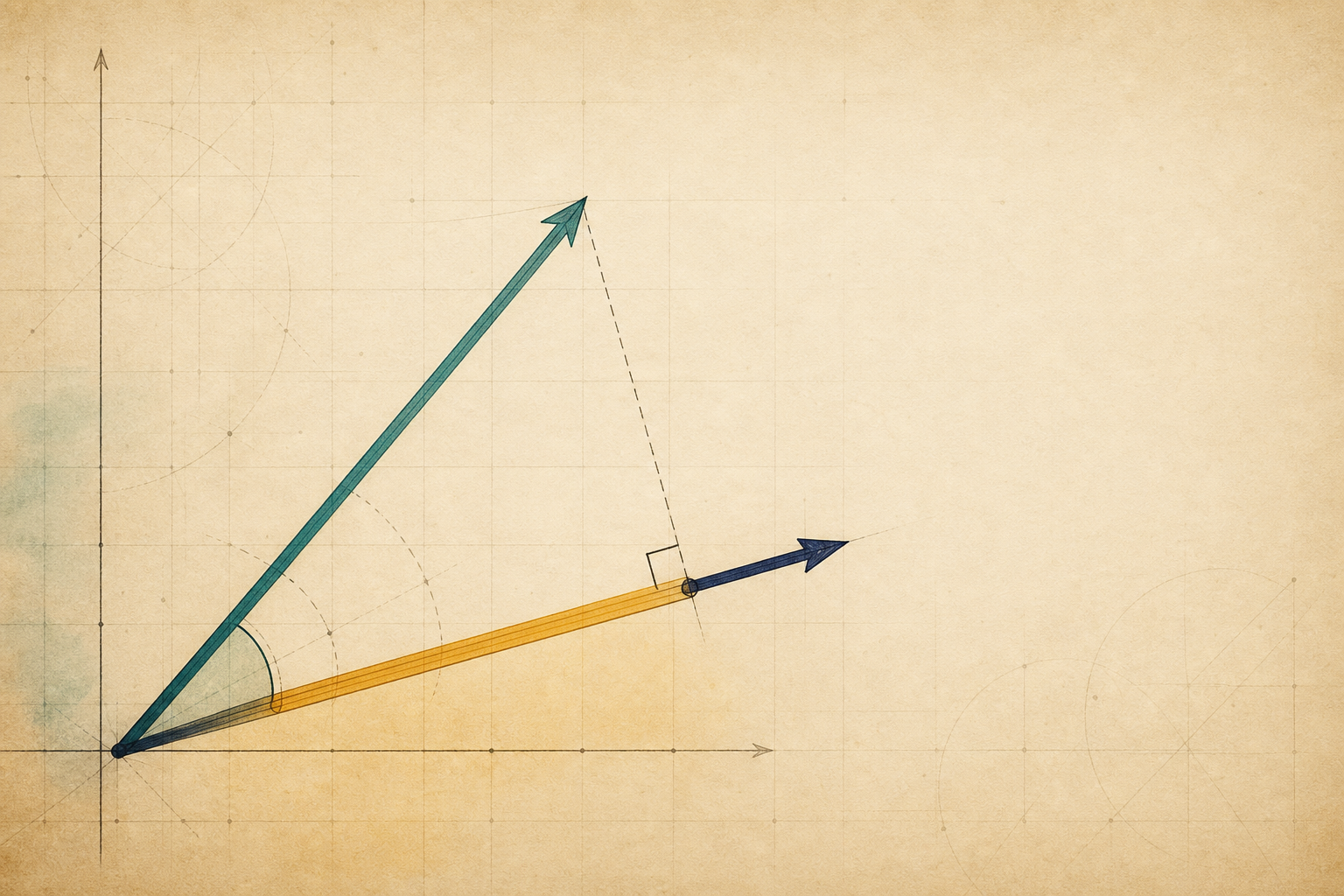

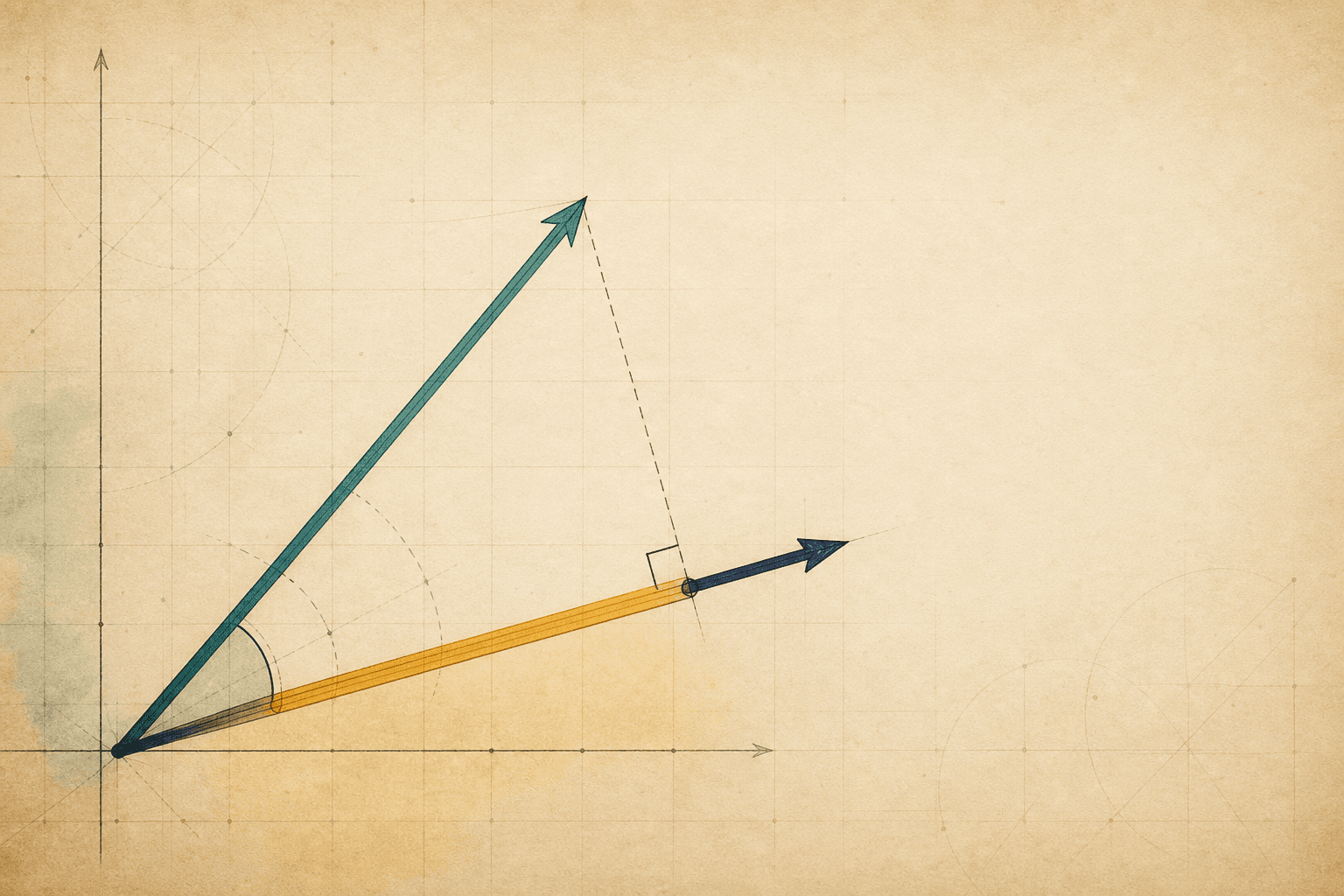

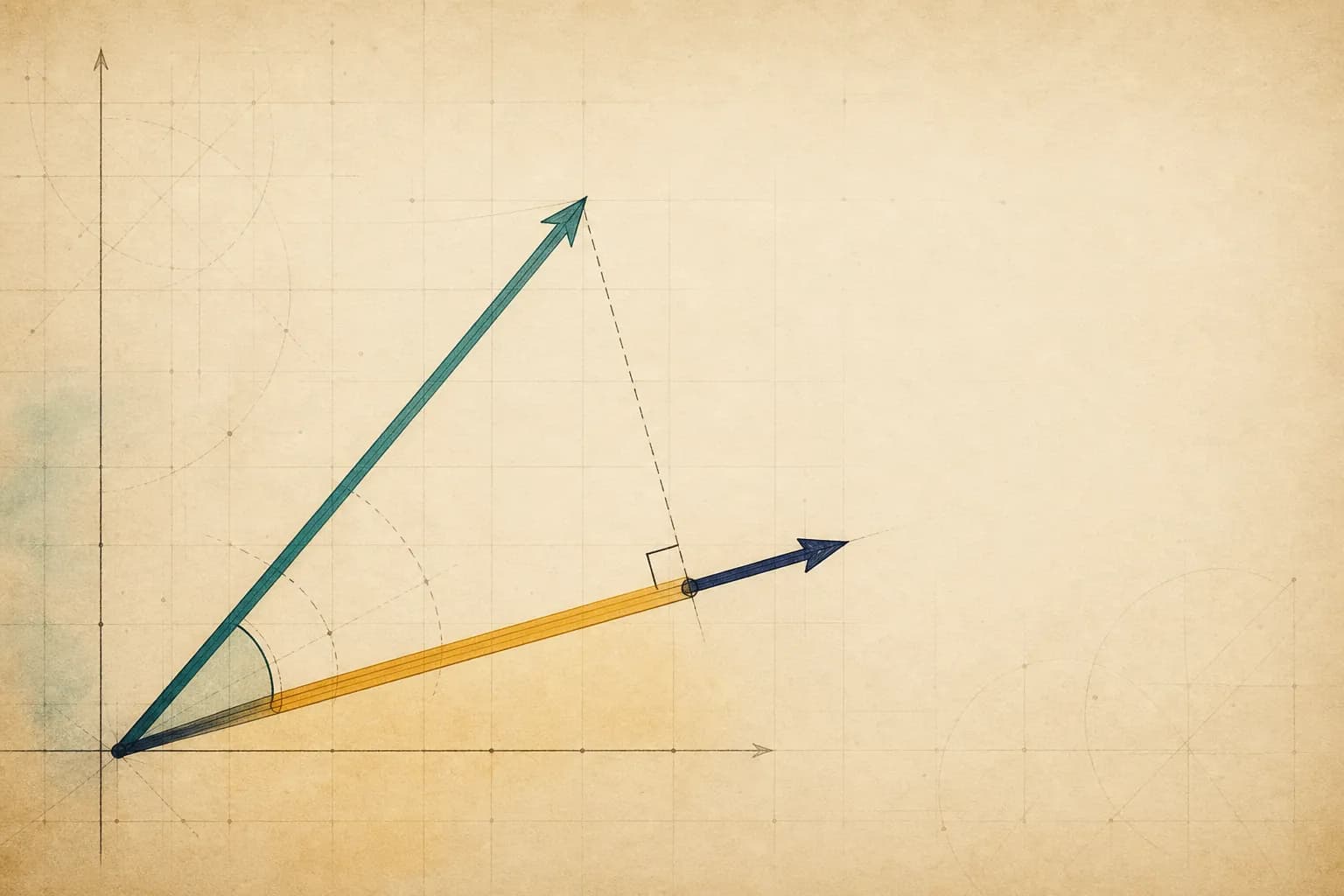

Editorial mathematical illustration of two vectors, their angle, and a projection shadow.
