Rotary Position Embeddings (RoPE)

A positional encoding that rotates queries and keys so attention depends on relative position via phase differences.

published · difficulty 3/5 · 14 min read

01

01

Intuition

Build the mental picture first so the rest of the page has something to attach to.

PredictName the object in plain language, then predict what should change.Leave with one reusable mental picture before notation appears.

Self-attention by itself does not know token order: it only sees a set of vectors and compares them.

RoPE injects position by rotating each token's query and key vectors by an angle that depends on its position. The magic is that when you take a dot product between a rotated query at position ppp and a rotated key at position qqq, the result depends on the relative offset (q−p)(q-p)(q−p).

A good mental model is "clock hands at multiple speeds":

  • high-frequency rotations capture local order (nearby tokens),
  • low-frequency rotations capture long-range order (far-apart tokens).
Section prompt

Copy-only prompts — each action copies a page-grounded prompt to your clipboard. Nothing is sent by this site.

02

02

Math

Translate the story into symbols, assumptions, and a derivation you can inspect.

InspectTrack the same object through the notation and check each symbol.Leave with the invariant the equations preserve.
Equation 1Inspect equation objectR(\theta) = \begin{pmatrix} \cos\theta -\sin\theta ; \sin\theta \cos\theta \end{pmatrix}.Equation 2Inspect equation object\tilde q_p^T \tilde k_q = q_p^T R(\theta_q - \theta_p) k_q, \qquad \tilde q_p = R(\theta_p) q...Equation 3Inspect equation object\theta_{p,i} = p \omega_i, \qquad \omega_i = base^{-2i/d},

In a 2D subspace, define a rotation matrix:

R(θ)=(cos⁡θ−sin⁡θsin⁡θcos⁡θ).R(\theta) = \begin{pmatrix} \cos\theta & -\sin\theta \\\\ \sin\theta & \cos\theta \end{pmatrix}.R(θ)=​cosθsinθ​−sinθcosθ​​.

RoPE rotates queries/keys by position-dependent angles, and their dot product reduces to a relative angle:

q~p⊤k~q=qp⊤R(θq−θp)kq,q~p=R(θp)qp,k~q=R(θq)kq,R(θp)⊤R(θq)=R(θq−θp).\tilde q_p^\top \tilde k_q = q_p^\top R(\theta_q - \theta_p) k_q, \qquad \tilde q_p = R(\theta_p) q_p, \qquad \tilde k_q = R(\theta_q) k_q, \qquad R(\theta_p)^\top R(\theta_q)=R(\theta_q-\theta_p).q~​p⊤​k~q​=qp⊤​R(θq​−θp​)kq​,q~​p​=R(θp​)qp​,k~q​=R(θq​)kq​,R(θp​)⊤R(θq​)=R(θq​−θp​).

So attention can depend on relative position through (θq−θp)(\theta_q-\theta_p)(θq​−θp​).

In practice, RoPE applies this to many 2D pairs with different frequencies. A common choice is:

θp,i=p ωi,ωi=base−2i/d,\theta_{p,i} = p\,\omega_i, \qquad \omega_i = \mathrm{base}^{-2i/d},θp,i​=pωi​,ωi​=base−2i/d,

where ddd is head dimension and iii indexes the 2D pairs.

RoPE applies this rotation independently to each 2D coordinate pair (2i,2i+1)(2i,2i+1)(2i,2i+1) of a head, so ddd is typically even and i∈{0,…,d2−1}i \in \{0,\dots,\frac d2-1\}i∈{0,…,2d​−1}.

Section prompt

Copy-only prompts — each action copies a page-grounded prompt to your clipboard. Nothing is sent by this site.

03

03

Code

Keep the implementation aligned with the notation so the algorithm is legible.

TraceMatch variables to symbols before reading the implementation.Leave with a runnable witness for the math.
Code witness 1import numpy as np def R(theta): c, s = np.cos(theta), np.sin(theta) return np.array([[c, -s]...python
import numpy as np

def R(theta):
    c, s = np.cos(theta), np.sin(theta)
    return np.array([[c, -s], [s, c]])

def rope_dot(q, k, p, qpos, w):
    return float((R(p * w) @ q) @ (R(qpos * w) @ k))

q = np.array([1.0, 0.2])
k = np.array([0.3, 1.0])
w = 0.7  # one frequency, for illustration

for delta in [0, 1, 2, 4, 8]:
    a = rope_dot(q, k, p=0, qpos=delta, w=w)
    b = rope_dot(q, k, p=5, qpos=5 + delta, w=w)  # same relative offset
    print("delta =", delta, "dot =", round(a, 3), "dot (shifted) =", round(b, 3))
Section prompt

Copy-only prompts — each action copies a page-grounded prompt to your clipboard. Nothing is sent by this site.

04

04

Interactive Demo

Use direct manipulation to connect the explanation to a moving system.

ManipulateChange one control and predict the visible response before reveal.Leave with the observed invariant or a repaired model.

Live Concept Demo

Explore Rotary Position Embeddings (RoPE)

The stage is code-native and interactive. Use it to test the explanation against the mechanism.

difficulty 3/5undergraduatecode-aligned
Demo inquiry checkpoint

Manipulate one control and predict the visible change.

01Choose lensTrace a quantity
02ObserveDemo state pending
03GroundName the equation, invariant, or control that explains it.
04CarryNext: Efficient Attention at Scale: KV Cache, GQA & FlashAttention

Choose what to inspect in Rotary Position Embeddings (RoPE). This shared fallback is an observation guide, not evidence of learning.

Loading interactive demo...

Use the demo to rotate queries/keys and see how relative position becomes a phase difference that attention can learn to exploit.

Section prompt

Copy-only prompts — each action copies a page-grounded prompt to your clipboard. Nothing is sent by this site.

4/4 sections ready

Concept: Rotary Position Embeddings (RoPE)

What is the smallest example that makes Rotary Position Embeddings (RoPE) click without losing the math?

BeforeScaled Dot-Product Attention & Transformer LayersNow4/4 sections readyTryManipulate one control and predict the visible change.NextEfficient Attention at Scale: KV Cache, GQA & FlashAttention
Object contextAttention & Transformers
StateAttention & Transformers
1 source attachedChecking local snapshot
concept:attention-transformers/rope
Math3 equation objectsR(\theta) = \begin{pmatrix} \cos\theta -\sin\theta ; \sin\theta \cos\theta \end{pmatrix}.CodeRotary Position Embeddings (RoPE) code witness 1c, s = np.cos(theta), np.sin(theta)DemoRotary Position Embeddings (RoPE) predictionManipulate one control and predict the visible change.
ConceptLearner lens

Rotary Position Embeddings (RoPE)

What is the smallest example that makes Rotary Position Embeddings (RoPE) click without losing the math?

Mode questionCan I say the mechanism back in one sentence before I reveal anything?

Start with the prediction checkpoint, then compare the reveal to the mental model.

Take this move

Study modes

Keep the object fixed; change the lens.
01PredictCommit before reveal.02ExplainName the invariant.03Ground1 source link nearby.04ExperimentChange one knob.05CarrySave the next question.

Route back through the notebook

Carry the same object through intuition, math, code, and demo.

4/4 sections ready
Carry inScaled Dot-Product Attention & Transformer Layers

Bring the mental model from Scaled Dot-Product Attention & Transformer Layers; this page will reuse it instead of restarting from zero.

Work hereRotary Position Embeddings (RoPE)

A positional encoding that rotates queries and keys so attention depends on relative position via phase differences.

Carry outEfficient Attention at Scale: KV Cache, GQA & FlashAttention

The next edge should feel earned: use the demo prediction here before following Efficient Attention at Scale: KV Cache, GQA & FlashAttention.

Test the linkManipulate one control and predict the visible change.Then continue to Efficient Attention at Scale: KV Cache, GQA & FlashAttention

After The First Pass

Turn the concept into an inspected object.

The lower panels are one second act: keep the object fixed, inspect it visually, check source boundaries, practice transfer, then attach the research question.
ConceptRotary Position Embeddings (RoPE)Attention & Transformers
01MechanismInspect motionSee how the idea changes form before adding more explanation.02VisualChoose a cueBind one visible mark to one mathematical role.03SourcesCheck boundary1 source link attached to the object.04ClaimAudit evidenceTreat the page claim as something to verify.05PracticeAttempt transferWrite before feedback so the model has something to repair.06RoomAsk groundedAttach the question to the same exact object.

Mechanism Storyboard

See the idea move before the page explains it

A positional encoding that rotates queries and keys so attention depends on relative position via phase differences.

Demo notes open01 / Intuition

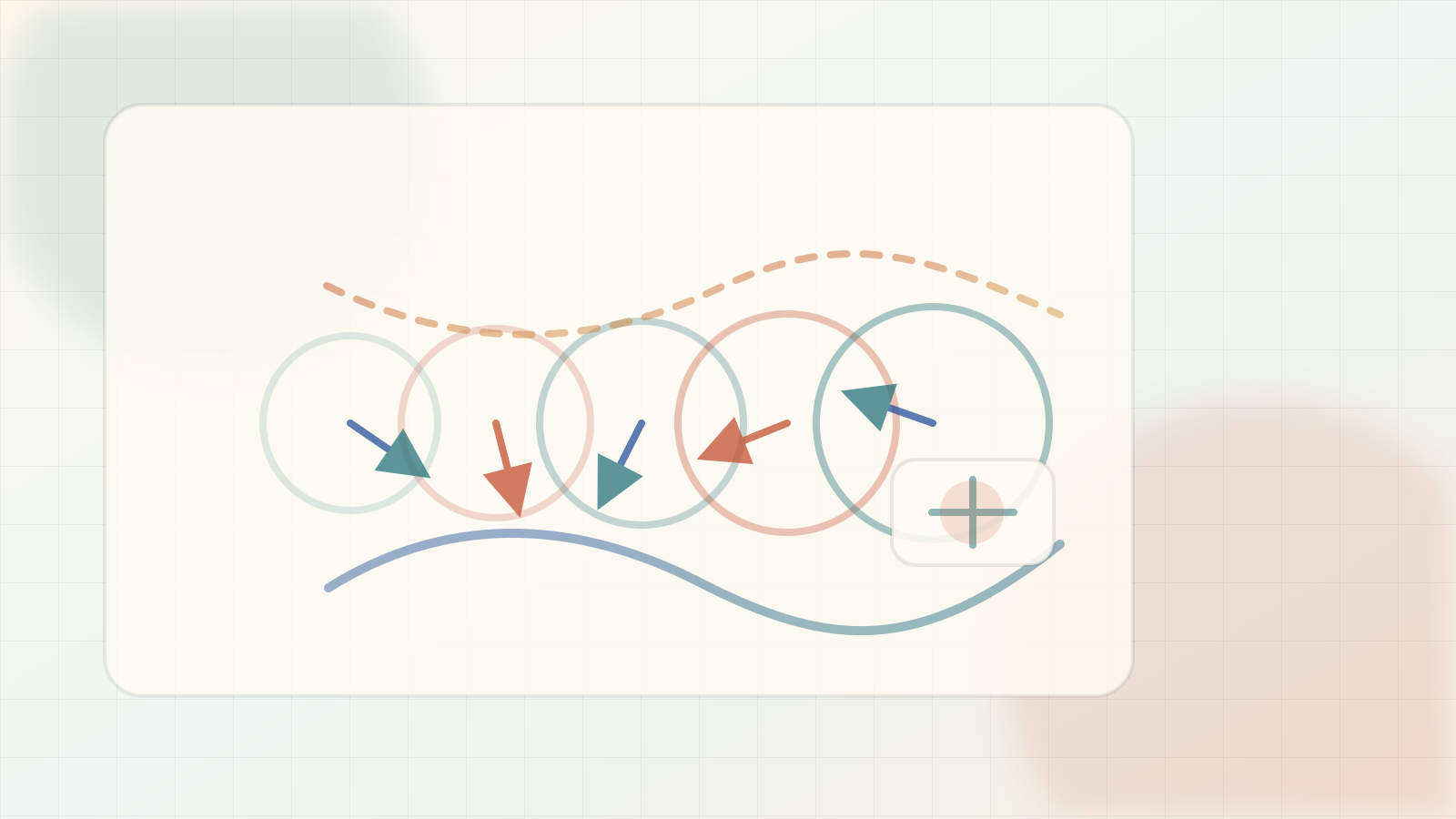

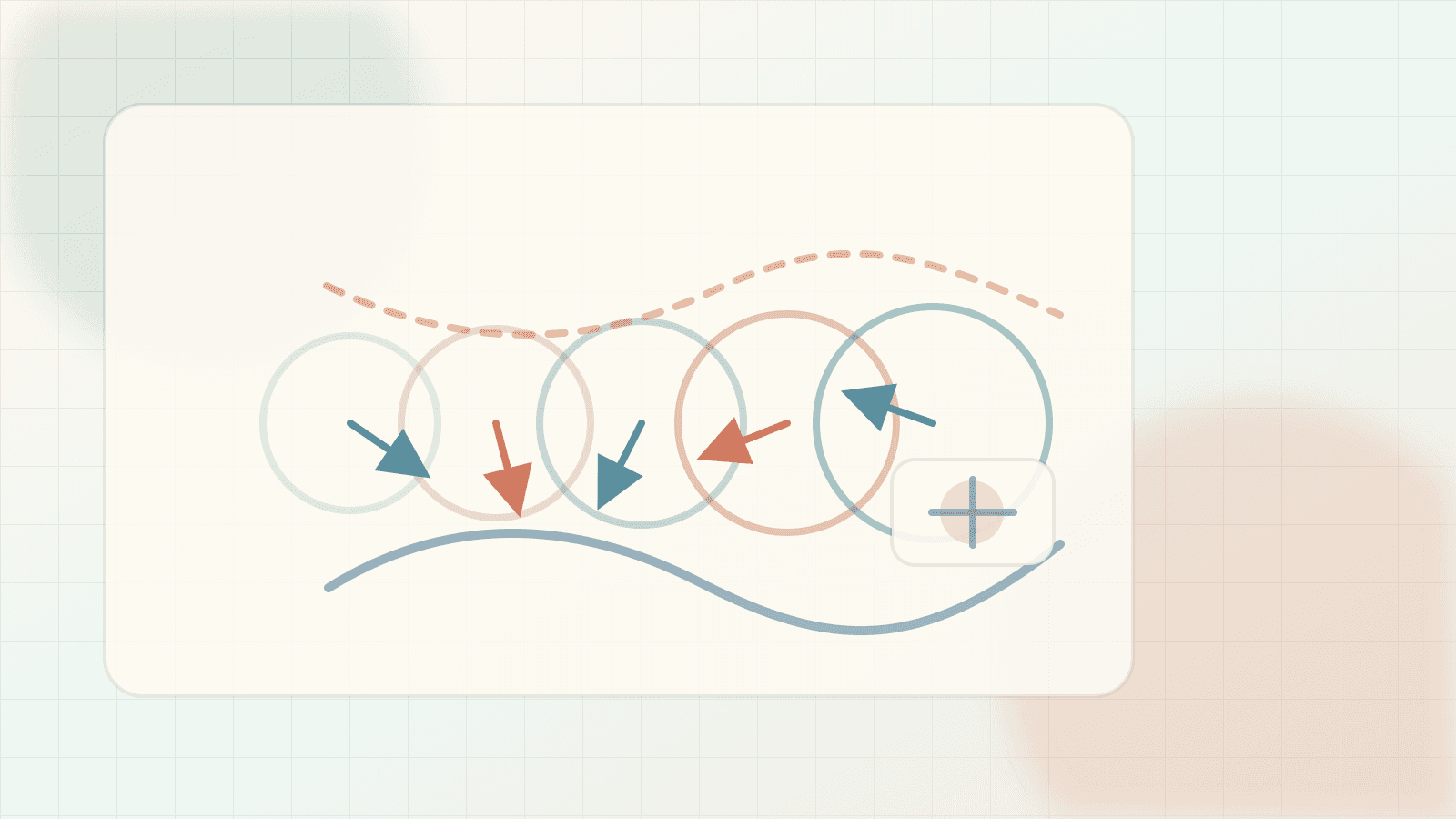

Editorial transformer illustration of rotary position vectors, relative phase arcs, and query-key geometry.
