Flow Matching & Rectified Flows

Learn flow matching as velocity-label regression: straight conditional paths use x_t=(1-t)x0+t x1 but supervise the full target u_t=x1-x0.

published · difficulty 4/5 · 16 min read

Reading map and next steps

Intuition

Build the mental picture first so the rest of the page has something to attach to.

PredictName the object in plain language, then predict what should change.Leave with one reusable mental picture before notation appears.

Diffusion models teach a model to "undo noise" step by step. Flow matching teaches a model something more direct: which direction to move.

Imagine starting with a cloud of noise points and wanting to morph it into a cloud shaped like your data. If you knew a time-dependent "wind field" $v(x,t)$ that pushes particles, you could integrate an ODE and watch noise turn into samples.

The first idea to get right is the supervised label. For one chosen noise/data pair, a straight conditional path uses the current point $x_t=(1-t)x_0+t x_1$ but trains on the constant velocity $u_t=x_1-x_0$ . The arrow from $x_t$ to $x_1$ is only the remaining displacement, not the training target.

Section prompt

Copy-only prompts — each action copies a page-grounded prompt to your clipboard. Nothing is sent by this site.

Math

Translate the story into symbols, assumptions, and a derivation you can inspect.

InspectTrack the same object through the notation and check each symbol.Leave with the invariant the equations preserve.

Equation 1Inspect equation object(dx_t)/(dt)=v_\theta(x_t,t),\qquad \mathcal L=\mathbb E_{t,x_0,x_1} \big\|v_\theta(x_t,t)-u_t...Equation 2Inspect equation objectx_t=(1-t)x_0+t x_1,\qquad u_t=(d)/(dt)x_t=x_1-x_0,\qquad x_1-x_t=(1-t)(x_1-x_0).Equation 3Inspect equation objectx_t + (1-t)u_t = x_1.

Generative flow and regression target

We model a trajectory $x_t$ with a neural velocity field $v_\theta$ , then train that field to match a target velocity $u_t$ :

\frac{dx_t}{dt}=v_\theta(x_t,t),\qquad \mathcal L=\mathbb E_{t,x_0,x_1}\,\big\|v_\theta(x_t,t)-u_t\big\|^2.

Rectified flow (straight paths)

Choose a straight interpolation between noise $x_0$ and data $x_1$ . Differentiating the path gives the supervised velocity label:

x_t=(1-t)x_0+t x_1,\qquad u_t=\frac{d}{dt}x_t=x_1-x_0,\qquad x_1-x_t=(1-t)(x_1-x_0).

The remaining displacement $x_1-x_t$ is shorter than the training label except at $t=0$ .

So the useful identity is:

x_t + (1-t)u_t = x_1.

For a single straight conditional pair, the velocity label stays fixed as $t$ changes; the remaining integration time shrinks.

Section prompt

Copy-only prompts — each action copies a page-grounded prompt to your clipboard. Nothing is sent by this site.

Code

Keep the implementation aligned with the notation so the algorithm is legible.

TraceMatch variables to symbols before reading the implementation.Leave with a runnable witness for the math.

Code witness 1import numpy as np rng = np.random.default_rng(0) x0 = rng.standard_normal(5) # A simple dete...python

import numpy as np

rng = np.random.default_rng(0)
x0 = rng.standard_normal(5)

# A simple deterministic "data" mapping for the toy example
x1 = 2.0 * x0 + 1.0

for t in [0.0, 0.25, 0.5, 0.75, 1.0]:
    xt = (1 - t) * x0 + t * x1
    u = x1 - x0
    remaining = x1 - xt

    # For this toy mapping, the exact velocity field can be written as v(xt,t):
    # xt = (1+t)x0 + t  =>  x0 = (xt - t)/(1+t)  =>  u = x0 + 1 = (xt + 1)/(1+t)
    v = (xt + 1.0) / (1.0 + t)
    print(
        "t=", t,
        "max|u-v|=", float(np.max(np.abs(u - v))),
        "remaining/full=", round(float(np.linalg.norm(remaining) / np.linalg.norm(u)), 2),
    )

Section prompt

Copy-only prompts — each action copies a page-grounded prompt to your clipboard. Nothing is sent by this site.

Interactive Demo

Use direct manipulation to connect the explanation to a moving system.

ManipulateChange one control and predict the visible response before reveal.Leave with the observed invariant or a repaired model.

Live Concept Demo

Explore Flow Matching & Rectified Flows

The stage is code-native and interactive. Use it to test the explanation against the mechanism.

difficulty 4/5graduatecode-aligned

Demo inquiry checkpoint

Manipulate one control and predict the visible change.

01Choose lensTrace a quantity

02ObserveDemo state pending

03GroundName the equation, invariant, or control that explains it.

04CarryNext: Efficiency: Quantization, Distillation, LoRA & Sparse MoE

Choose what to inspect in Flow Matching & Rectified Flows. This shared fallback is an observation guide, not evidence of learning.

Loading interactive demo...

Use the demo to predict the hidden conditional velocity target for one paired example. The page keeps the pairings synthetic on purpose: it is teaching the regression label, not claiming to solve an optimal-transport assignment.

Section prompt

Copy-only prompts — each action copies a page-grounded prompt to your clipboard. Nothing is sent by this site.

Object

4/4 sections ready

Concept: Flow Matching & Rectified Flows

What is the smallest example that makes Flow Matching & Rectified Flows click without losing the math?

BeforeDiffusion, Score-Based Models & Flow MatchingNow4/4 sections readyTryManipulate one control and predict the visible change.NextEfficiency: Quantization, Distillation, LoRA & Sparse MoE

Object contextGenerative Models

StateGenerative Models

2 sources attachedChecking local snapshot

concept:generative-models/flow-matching

Math3 equation objects(dx_t)/(dt)=v_\theta(x_t,t),\qquad \mathcal L=\mathbb E_{t,x_0,x_1} \big\|v_\theta(x_t,t)-u_t...CodeFlow Matching & Rectified Flows code witness 1rng = np.random.default_rng(0)DemoFlow Matching & Rectified Flows predictionManipulate one control and predict the visible change.

ConceptLearner lens

Flow Matching & Rectified Flows

What is the smallest example that makes Flow Matching & Rectified Flows click without losing the math?

Mode questionCan I say the mechanism back in one sentence before I reveal anything?

Start with the prediction checkpoint, then compare the reveal to the mental model.

Take this move

Study modes

Keep the object fixed; change the lens.

01PredictCommit before reveal.02ExplainName the invariant.03Ground2 source links nearby.04ExperimentChange one knob.05CarrySave the next question.

Route back through the notebook

Carry the same object through intuition, math, code, and demo.

4/4 sections ready

Carry inDiffusion, Score-Based Models & Flow Matching

Bring the mental model from Diffusion, Score-Based Models & Flow Matching; this page will reuse it instead of restarting from zero.

Work hereFlow Matching & Rectified Flows

Learn flow matching as velocity-label regression: straight conditional paths use x_t=(1-t)x0+t x1 but supervise the full target u_t=x1-x0.

Carry outEfficiency: Quantization, Distillation, LoRA & Sparse MoE

The next edge should feel earned: use the demo prediction here before following Efficiency: Quantization, Distillation, LoRA & Sparse MoE.

After The First Pass

Turn the concept into an inspected object.

The lower panels are one second act: keep the object fixed, inspect it visually, check source boundaries, practice transfer, then attach the research question.

ConceptFlow Matching & Rectified FlowsGenerative Models

01MechanismInspect motionSee how the idea changes form before adding more explanation.02VisualChoose a cueBind one visible mark to one mathematical role.03SourcesCheck boundary2 source links attached to the object.04ClaimAudit evidenceTreat the page claim as something to verify.05PracticeAttempt transferWrite before feedback so the model has something to repair.06RoomAsk groundedAttach the question to the same exact object.

Mechanism Storyboard

See the idea move before the page explains it

Learn flow matching as velocity-label regression: straight conditional paths use x_t=(1-t)x0+t x1 but supervise the full target u_t=x1-x0.

Demo notes open01 / Intuition

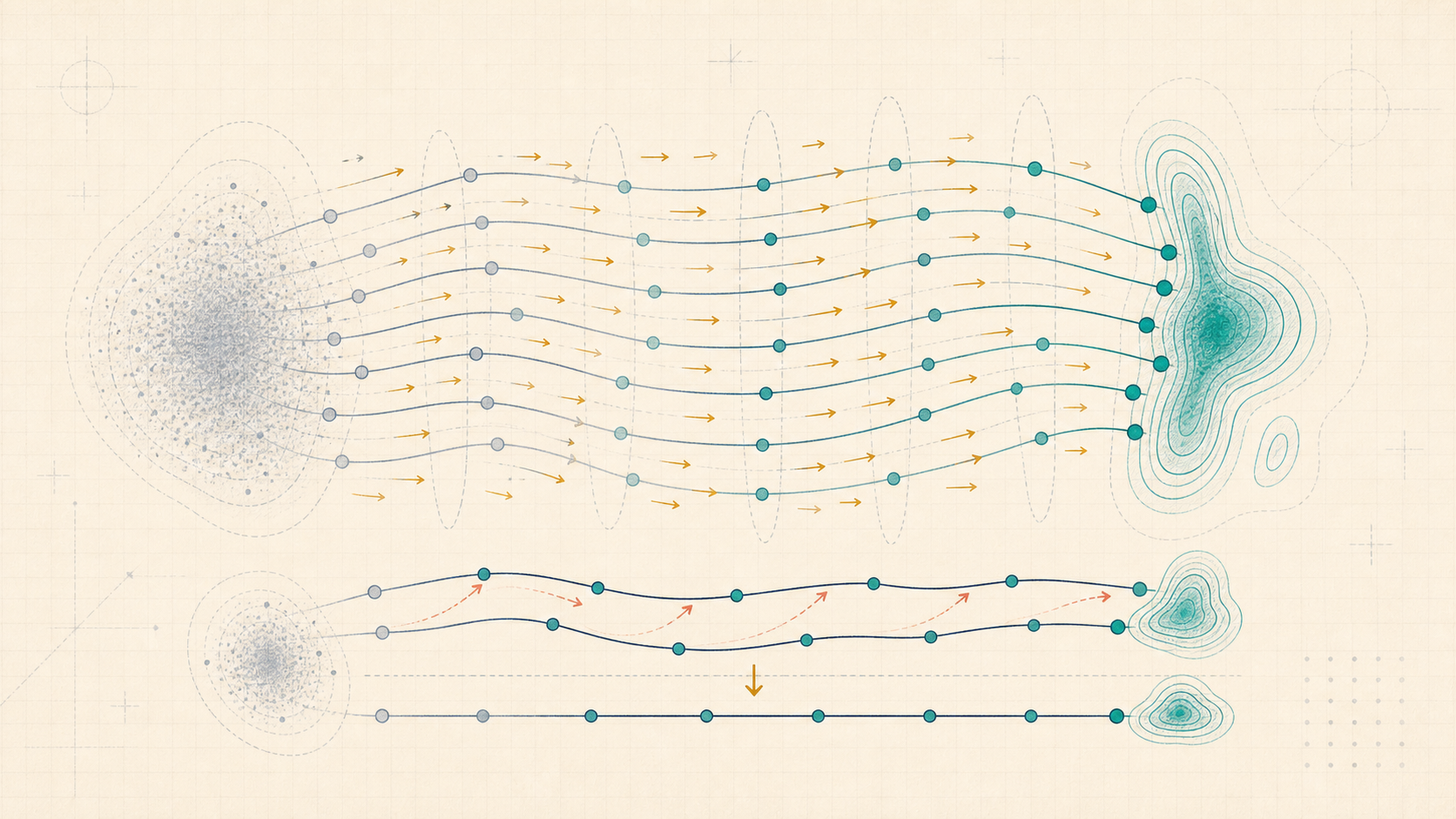

Editorial generative-model illustration of particles transported by a learned velocity field from noise into a target distribution.
