Loss Landscapes, Sharpness & Flat Minima

How 2D loss slices, Hessian curvature, SAM-style neighborhood loss, and a toy 2/eta stability line expose local sensitivity during optimization.

published · difficulty 3/5 · 16 min read

01

01

Intuition

Build the mental picture first so the rest of the page has something to attach to.

PredictName the object in plain language, then predict what should change.Leave with one reusable mental picture before notation appears.

Training is "roll downhill on a surface", but for neural nets that surface lives in a space with millions (or billions) of dimensions.

So when people show a 2D loss landscape, it is not the landscape. It is a slice: a tiny window into how loss changes along a couple of directions in parameter space.

Even so, those slices teach something real:

  • Sharp minima: a tiny weight perturbation makes loss jump. These are useful local sensitivity diagnostics, but their meaning depends on the chosen perturbation scale and parameterization.
  • Flat minima: you can wiggle weights a bit and loss barely changes. Flatter regions are often studied as generalization correlates, not as universal guarantees.

SAM makes one version of this bias explicit: optimize for low loss in a small neighborhood, not just at one point. Other optimizer tricks are often discussed through similar flatness intuitions, but they need their own sources before becoming checked claims here.

Section prompt

Copy-only prompts — each action copies a page-grounded prompt to your clipboard. Nothing is sent by this site.

02

02

Math

Translate the story into symbols, assumptions, and a derivation you can inspect.

InspectTrack the same object through the notation and check each symbol.Leave with the invariant the equations preserve.
Equation 1Inspect equation objectL(w+\epsilon) \approx L(w) + \epsilon^T \nabla L(w) + \tfrac12 \epsilon^T H(w) \epsilon,Equation 2Inspect equation object\Delta_{\rho}(w) := \max_{\|\epsilon\|_2 <= \rho} \big(L(w+\epsilon) - L(w)\big); L_{SAM}(w)...

Let L(w)L(w)L(w) be the training loss for parameters www. Near a point www, a quadratic approximation is:

L(w+ϵ)≈L(w)+ϵ⊤∇L(w)+12 ϵ⊤H(w) ϵ,L(w+\epsilon) \approx L(w) + \epsilon^\top \nabla L(w) + \tfrac12\,\epsilon^\top H(w)\,\epsilon,L(w+ϵ)≈L(w)+ϵ⊤∇L(w)+21​ϵ⊤H(w)ϵ,

where H(w)=∇2L(w)H(w) = \nabla^2 L(w)H(w)=∇2L(w) is the Hessian (curvature).

A common proxy for "sharpness" is how much loss can increase under a small perturbation. SAM turns that local-neighborhood idea into an objective:

Δρ(w):=max⁡∥ϵ∥2≤ρ(L(w+ϵ)−L(w)),LSAM(w):=max⁡∥ϵ∥2≤ρL(w+ϵ),min⁡wLSAM(w),ϵ^(w)≈ρ ∇L(w)∥∇L(w)∥2.\begin{aligned} \Delta_{\rho}(w) &:= \max_{\|\epsilon\|_2 \le \rho} \big(L(w+\epsilon) - L(w)\big),\\ L_{\mathrm{SAM}}(w) &:= \max_{\|\epsilon\|_2 \le \rho} L(w+\epsilon), \qquad \min_w L_{\mathrm{SAM}}(w),\\ \hat{\epsilon}(w) &\approx \rho\,\frac{\nabla L(w)}{\|\nabla L(w)\|_2}. \end{aligned}Δρ​(w)LSAM​(w)ϵ^(w)​:=∥ϵ∥2​≤ρmax​(L(w+ϵ)−L(w)),:=∥ϵ∥2​≤ρmax​L(w+ϵ),wmin​LSAM​(w),≈ρ∥∇L(w)∥2​∇L(w)​.​

Here Δρ\Delta_\rhoΔρ​ is the local loss-increase proxy. SAM optimizes the worst-case training loss in the ρ\rhoρ-neighborhood, and in practice approximates the inner maximizer with a single step in the gradient direction before updating from the perturbed weights ∇L(w+ϵ^(w))\nabla L(w+\hat{\epsilon}(w))∇L(w+ϵ^(w)).

Section prompt

Copy-only prompts — each action copies a page-grounded prompt to your clipboard. Nothing is sent by this site.

03

03

Code

Keep the implementation aligned with the notation so the algorithm is legible.

TraceMatch variables to symbols before reading the implementation.Leave with a runnable witness for the math.
Code witness 1import numpy as np # Anisotropic quadratic: sharp along x (large curvature), flat along y (sm...python
import numpy as np

# Anisotropic quadratic: sharp along x (large curvature), flat along y (small curvature).
a, b = 20.0, 1.0  # Hessian eigenvalues
lam_max = max(a, b)

def L(w): return 0.5 * (a * w[0] ** 2 + b * w[1] ** 2)
def grad(w): return np.array([a * w[0], b * w[1]])

print("stable if eta < 2/lambda_max =", round(2.0 / lam_max, 3))

for eta in [0.02, 0.08, 0.12]:
    w = np.array([1.0, 1.0])
    ok = True
    for _ in range(60):
        w = w - eta * grad(w)
        if not np.isfinite(L(w)) or np.linalg.norm(w) > 1e6:
            ok = False; break
    print("eta =", eta, "final L =", round(L(w), 6), "status =", "ok" if ok else "diverged")
Section prompt

Copy-only prompts — each action copies a page-grounded prompt to your clipboard. Nothing is sent by this site.

04

04

Interactive Demo

Use direct manipulation to connect the explanation to a moving system.

ManipulateChange one control and predict the visible response before reveal.Leave with the observed invariant or a repaired model.

Live Concept Demo

Explore Loss Landscapes, Sharpness & Flat Minima

The stage is code-native and interactive. Use it to test the explanation against the mechanism.

difficulty 3/5undergraduatecode-aligned
Demo inquiry checkpoint

Manipulate one control and predict the visible change.

01Choose lensTrace a quantity
02ObserveDemo state pending
03GroundName the equation, invariant, or control that explains it.
04CarryNext: Overparameterization & Generalization (Double Descent)

Choose what to inspect in Loss Landscapes, Sharpness & Flat Minima. This shared fallback is an observation guide, not evidence of learning.

Loading interactive demo...

This notebook page now has two focused stages:

  • Stage 1: a 2D loss slice with local Hessian curvature through a λmax⁡\lambda_{\max}λmax​ sharpness proxy, SAM's perturbation ball, and a prediction check comparing SGD and SAM endpoint sharpness in the toy.
  • Stage 2: a toy stability-line demo that asks whether a sharpness trace stays safely below the local quadratic GD line 2/η2/\eta2/η, hovers near this toy threshold, or crosses into divergence.

The 3D surface remains a separate legacy exploration and should receive its own rollout slice later.

Section prompt

Copy-only prompts — each action copies a page-grounded prompt to your clipboard. Nothing is sent by this site.

4/4 sections ready

Concept: Loss Landscapes, Sharpness & Flat Minima

What is the smallest example that makes Loss Landscapes, Sharpness & Flat Minima click without losing the math?

BeforeAdam OptimizerNow4/4 sections readyTryManipulate one control and predict the visible change.NextOverparameterization & Generalization (Double Descent)
Object contextOptimization
StateOptimization
3 sources attachedChecking local snapshot
concept:optimization/loss-landscapes
Math2 equation objectsL(w+\epsilon) \approx L(w) + \epsilon^T \nabla L(w) + \tfrac12 \epsilon^T H(w) \epsilon,CodeLoss Landscapes, Sharpness & Flat Minima code witness 1a, b = 20.0, 1.0 # Hessian eigenvaluesDemoLoss Landscapes, Sharpness & Flat Minima predictionManipulate one control and predict the visible change.
ConceptLearner lens

Loss Landscapes, Sharpness & Flat Minima

What is the smallest example that makes Loss Landscapes, Sharpness & Flat Minima click without losing the math?

Mode questionCan I say the mechanism back in one sentence before I reveal anything?

Start with the prediction checkpoint, then compare the reveal to the mental model.

Take this move

Study modes

Keep the object fixed; change the lens.
01PredictCommit before reveal.02ExplainName the invariant.03Ground3 source links nearby.04ExperimentChange one knob.05CarrySave the next question.

Route back through the notebook

Carry the same object through intuition, math, code, and demo.

4/4 sections ready
Carry inAdam Optimizer

Bring the mental model from Adam Optimizer; this page will reuse it instead of restarting from zero.

Work hereLoss Landscapes, Sharpness & Flat Minima

How 2D loss slices, Hessian curvature, SAM-style neighborhood loss, and a toy 2/eta stability line expose local sensitivity during optimization.

Carry outOverparameterization & Generalization (Double Descent)

The next edge should feel earned: use the demo prediction here before following Overparameterization & Generalization (Double Descent).

Test the linkManipulate one control and predict the visible change.Then continue to Overparameterization & Generalization (Double Descent)

After The First Pass

Turn the concept into an inspected object.

The lower panels are one second act: keep the object fixed, inspect it visually, check source boundaries, practice transfer, then attach the research question.
ConceptLoss Landscapes, Sharpness & Flat MinimaOptimization
01MechanismInspect motionSee how the idea changes form before adding more explanation.02VisualChoose a cueBind one visible mark to one mathematical role.03SourcesCheck boundary3 source links attached to the object.04ClaimAudit evidenceTreat the page claim as something to verify.05PracticeAttempt transferWrite before feedback so the model has something to repair.06RoomAsk groundedAttach the question to the same exact object.

Mechanism Storyboard

See the idea move before the page explains it

How 2D loss slices, Hessian curvature, SAM-style neighborhood loss, and a toy 2/eta stability line expose local sensitivity during optimization.

Demo notes open01 / Intuition

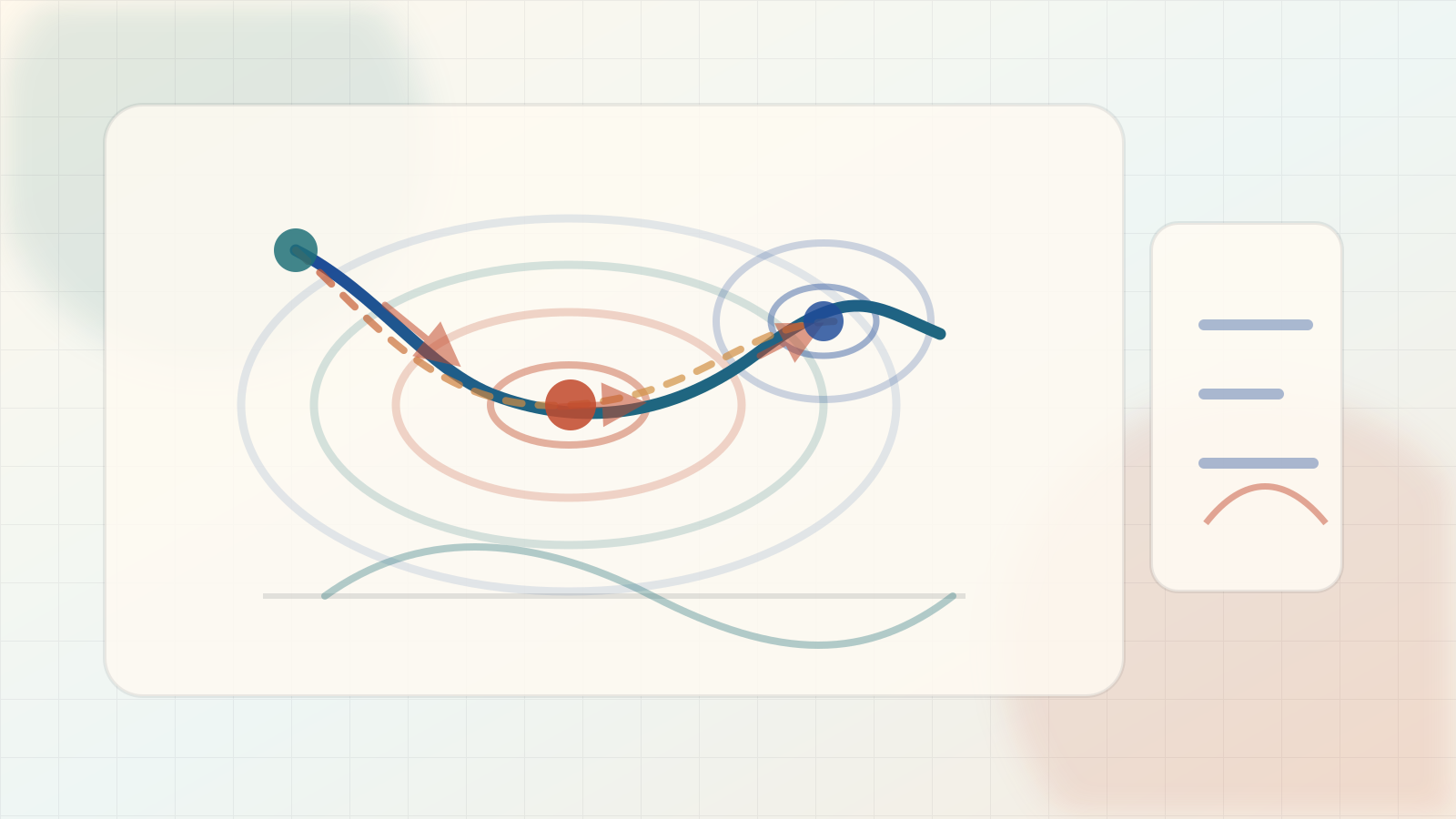

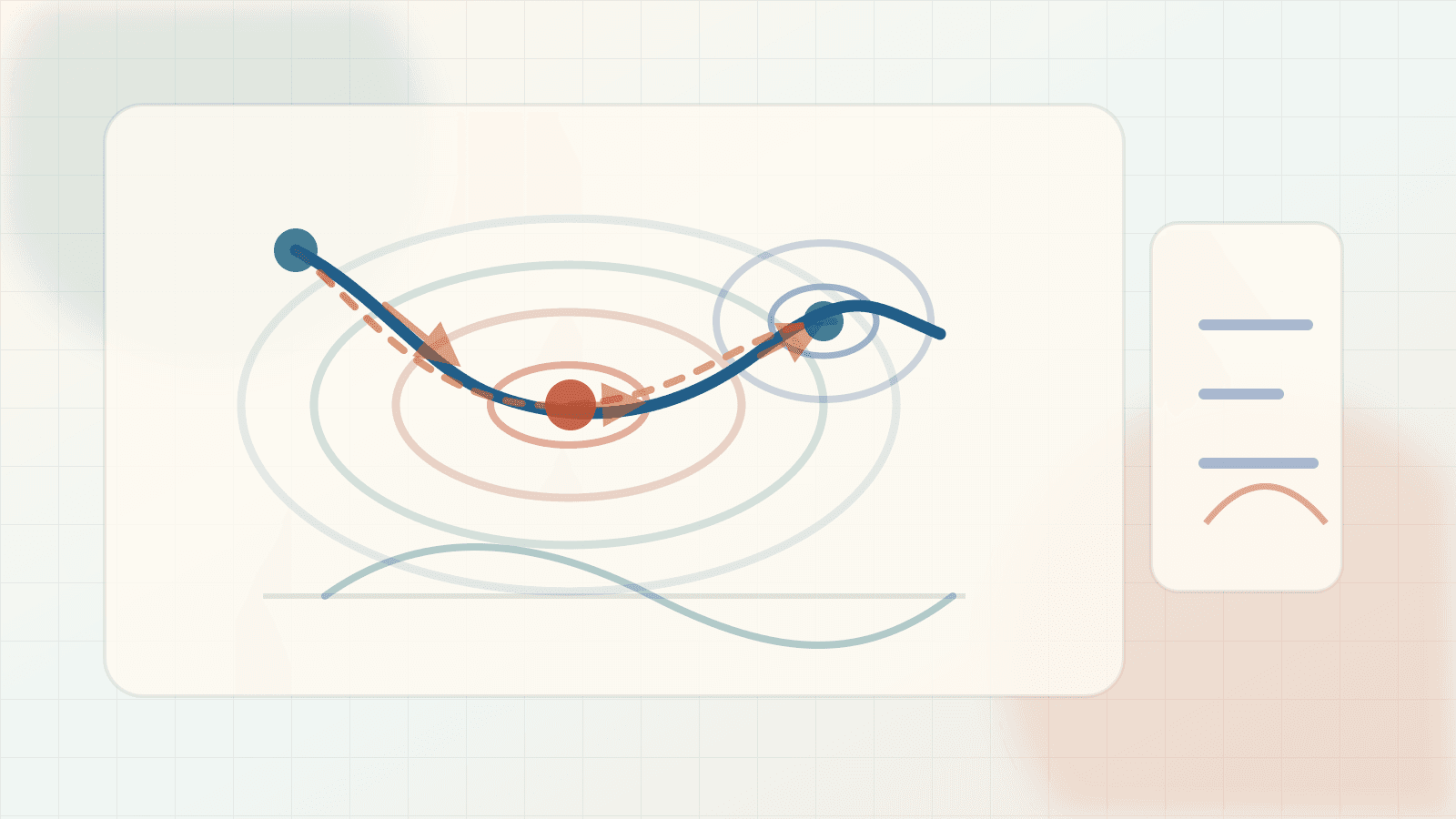

Editorial optimization illustration of contour loss basins, sharp and flat minima, and descent trajectories.
