Structured Decoding: Token Masks From Schema Automata

How a schema automaton or parser state turns next-token logits into constraint-valid generation by masking invalid continuations, while leaving truth and task success outside the formal guarantee.

published · difficulty 4/5 · 22 min read

Intuition

Build the mental picture first so the rest of the page has something to attach to.

PredictName the object in plain language, then predict what should change.Leave with one reusable mental picture before notation appears.

Canonical sources: Scholak et al., "PICARD", Beurer-Kellner et al., "LMQL", the JSON Schema object reference, the Outlines constrained-generation docs, OpenAI's Structured Outputs guide, Louf and Willard et al., "DOMINO", Dong et al., "XGrammar", and the vLLM structured outputs docs.

Decoding and sampling turn next-token logits into text. Structured decoding adds one more object to the loop: a tiny parser or automaton state.

At each step, the model still proposes ordinary logits over tokens. The schema state asks a stricter question: which next tokens can still lead to a valid completion? Invalid tokens are masked to probability zero. The remaining tokens are renormalized, then greedy decoding, sampling, beam search, or tree search can choose among them.

The guarantee is narrow but useful. If the automaton is correct, every emitted token follows its mask, and decoding stops in an accepting state, then the output belongs to the formal language. That does not mean the source is true, the tool should be called, the answer is safe, or the selected enum is semantically right.

This page studies that finite mechanism, not product JSON mode, tool calling, retries, validators after generation, or full JSON Schema.

The demo is deliberately over toy tokens: real tokenizers can split or merge pieces like "tool" or {, so production masks are built over actual token IDs. The schema here is exact-order and finite-enum; real JSON Schema can admit many equivalent serializations. The naive and cached check counts in the demo illustrate carried decode-time mask work, not a universal latency model.

Section prompt

Copy-only prompts — each action copies a page-grounded prompt to your clipboard. Nothing is sent by this site.

Math

Translate the story into symbols, assumptions, and a derivation you can inspect.

InspectTrack the same object through the notation and check each symbol.Leave with the invariant the equations preserve.

Equation 1Inspect equation objectA=(Q,\mathcal V,\delta,q_0,F),\qquad \delta:Q\times\mathcal Vharpoonup Q.Equation 2Inspect equation objectM(q_t)= \{v\in\mathcal V:\delta(q_t,v)\ is\ defined\ and\ can\ reach\ F\}, \qquad p_A(v\mid y...Equation 3Inspect equation objectq_{t+1}=\delta(q_t,y_{t+1}).

Let $\mathcal V$ be a fixed finite token vocabulary, including an end token $\texttt{<eos>}$ .

Represent the schema as a deterministic finite automaton

A=(Q,\mathcal V,\delta,q_0,F),\qquad \delta:Q\times\mathcal V\rightharpoonup Q.

For a prefix $y_{1:t}$ , the schema state is $q_t=\delta^\*(q_0,y_{1:t})$ when every transition is defined.

That "can reach" clause matters. A local transition that enters a dead end should not remain allowed.

The allowed-token mask should include only tokens that can still reach acceptance. Given model logits $\ell_t(v)$ and temperature $\tau$ , constrained decoding uses

M(q_t)= \{v\in\mathcal V:\delta(q_t,v)\ \mathrm{is\ defined\ and\ can\ reach}\ F\}, \qquad p_A(v\mid y_{1:t})= \frac{\exp(\ell_t(v)/\tau)\mathbf 1[v\in M(q_t)]} {\sum_{u\in M(q_t)}\exp(\ell_t(u)/\tau)}.

Then a decoder selects or samples $y_{t+1}$ from $p_A$ and updates

q_{t+1}=\delta(q_t,y_{t+1}).

Stopping is accepted only when $q_{t+1}\in F$ , usually after an explicit $\texttt{<eos>}$ token.

If top- $p$ is used, the hard schema mask should be applied first, then top- $p$ truncates and renormalizes inside the valid set. Applying top- $p$ first can throw away every valid token when the raw model strongly prefers invalid ones.

The modest theorem is:

If every emitted token is sampled from $M(q_t)$ and the run stops in $F$ , then the token sequence is in $L(A)$ . Nothing follows about whether the content is true, useful, task-correct, or semantically correct; safety is likewise outside a formal syntax guarantee.

Section prompt

Copy-only prompts — each action copies a page-grounded prompt to your clipboard. Nothing is sent by this site.

Code

Keep the implementation aligned with the notation so the algorithm is legible.

TraceMatch variables to symbols before reading the implementation.Leave with a runnable witness for the math.

Code witness 1from collections import defaultdict from math import exp V = [ "{", "}", ":", ",", '"tool"',...python

This witness implements the same finite object as the demo: a token-level automaton for a tiny ordered retrieval-call schema. The unconstrained decoder can choose an invalid token immediately. The constrained decoder is schema-valid. A semantic-mismatch profile stays schema-valid while choosing the wrong source for the hidden task.

from collections import defaultdict
from math import exp

V = [
    "{", "}", ":", ",",
    '"tool"', '"source"', '"k"',
    '"retrieve"', '"lookup"', '"docs"', '"tickets"',
    "1", "2",
    '"DROP"', '"extra"', "true", "<eos>",
]

D = {
    0: {"{": 1},
    1: {'"tool"': 2},
    2: {":": 3},
    3: {'"retrieve"': 4, '"lookup"': 4},
    4: {",": 5},
    5: {'"source"': 6},
    6: {":": 7},
    7: {'"docs"': 8, '"tickets"': 8},
    8: {",": 9},
    9: {'"k"': 10},
    10: {":": 11},
    11: {"1": 12, "2": 12},
    12: {"}": 13},
    13: {"<eos>": 14},
}

ACCEPT = {14}

VALID_PROFILES = {"schema-friendly", "format-confused", "semantic-mismatch"}

def good_states():
    rev = defaultdict(set)
    for q, arcs in D.items():
        for tok, r in arcs.items():
            rev[r].add(q)
    good = set(ACCEPT)
    stack = list(ACCEPT)
    while stack:
        r = stack.pop()
        for q in rev[r]:
            if q not in good:
                good.add(q)
                stack.append(q)
    return good

GOOD = good_states()

def allowed(q):
    return [tok for tok in V if D.get(q, {}).get(tok) in GOOD]

def step(q, tok):
    return D.get(q, {}).get(tok)

def base_logits(q, profile):
    if profile not in VALID_PROFILES:
        raise ValueError(f"unknown profile: {profile}")

    z = {tok: -2.0 for tok in V}
    for tok in allowed(q):
        z[tok] = 1.0

    preferred = {3: '"retrieve"', 7: '"docs"', 11: "2"}
    if q in preferred:
        z[preferred[q]] = 2.0

    if profile == "format-confused":
        z['"DROP"'] = 5.0
        z['"extra"'] = 4.0

    if profile == "semantic-mismatch" and q == 7:
        z['"tickets"'] = 5.0
        z['"docs"'] = 1.0

    return z

def softmax(z, toks):
    m = max(z[t] for t in toks)
    weights = {t: exp(z[t] - m) for t in toks}
    total = sum(weights.values())
    return {t: weights.get(t, 0.0) / total for t in V}

def masked_probs(z, q):
    return softmax(z, allowed(q))

def rejection_mass(z, q):
    raw = softmax(z, V)
    return 1.0 - sum(raw[t] for t in allowed(q))

def decode(profile="format-confused", constrained=True, max_steps=32):
    q = 0
    toks = []
    states = [q]

    for _ in range(max_steps):
        z = base_logits(q, profile)
        p = masked_probs(z, q) if constrained else softmax(z, V)
        tok = max(V, key=lambda t: (p[t], -V.index(t)))
        toks.append(tok)
        q_next = step(q, tok)

        if q_next is None:
            return {"tokens": toks, "states": states, "accepted": False}

        q = q_next
        states.append(q)

        if q in ACCEPT:
            return {"tokens": toks, "states": states, "accepted": True}

    return {"tokens": toks, "states": states, "accepted": False}

def parse_source(tokens):
    i = tokens.index('"source"')
    return tokens[i + 2].strip('"')

assert allowed(0) == ["{"]
assert set(allowed(3)) == {'"retrieve"', '"lookup"'}
assert allowed(13) == ["<eos>"]

bad = decode("format-confused", constrained=False)
assert bad["accepted"] is False
assert bad["tokens"][0] == '"DROP"'

good = decode("format-confused", constrained=True)
assert good["accepted"] is True
assert good["tokens"] == [
    "{", '"tool"', ":", '"retrieve"', ",",
    '"source"', ":", '"docs"', ",",
    '"k"', ":", "2", "}", "<eos>",
]

z = base_logits(3, "format-confused")
p = masked_probs(z, 3)
assert p['"DROP"'] == 0.0
assert rejection_mass(z, 3) > 0.90

sem = decode("semantic-mismatch", constrained=True)
assert sem["accepted"] is True
assert parse_source(sem["tokens"]) == "tickets"

Section prompt

Copy-only prompts — each action copies a page-grounded prompt to your clipboard. Nothing is sent by this site.

Interactive Demo

Use direct manipulation to connect the explanation to a moving system.

ManipulateChange one control and predict the visible response before reveal.Leave with the observed invariant or a repaired model.

Live Concept Demo

Explore Structured Decoding: Token Masks From Schema Automata

The stage is code-native and interactive. Use it to test the explanation against the mechanism.

difficulty 4/5undergraduatecode-aligned

Demo inquiry checkpoint

Manipulate one control and predict the visible change.

01Choose lensTrace a quantity

02ObserveDemo state pending

03GroundName the equation, invariant, or control that explains it.

04CarryNext: Retrieval-Augmented Generation: External Memory for Generation

Choose what to inspect in Structured Decoding: Token Masks From Schema Automata. This shared fallback is an observation guide, not evidence of learning.

Loading interactive demo...

Use the Schema Mask Explorer as a prediction check. At the current automaton state, inspect the raw logits and predict whether the raw highest-logit token survives the schema mask, gets replaced by the highest valid token, or has no valid continuation.

After reveal, compare raw probability mass with the masked-and-renormalized distribution. Then turn the mask off to see a high-logit invalid token break the prefix, or use the semantic-mismatch profile to see the key limitation: schema-valid output can still choose the wrong source for the task.

Section prompt

Copy-only prompts — each action copies a page-grounded prompt to your clipboard. Nothing is sent by this site.

Object

4/4 sections ready

Concept: Structured Decoding: Token Masks From Schema Automata

What is the smallest example that makes Structured Decoding: Token Masks From Schema Automata click without losing the math?

BeforeDecoding & Sampling: Temperature, Top-p & Inference-Time ControlNow4/4 sections readyTryManipulate one control and predict the visible change.NextRetrieval-Augmented Generation: External Memory for Generation

Object contextLLM Systems

StateLLM Systems

2 sources attachedChecking local snapshot

concept:llm-systems/structured-decoding

Math3 equation objectsA=(Q,\mathcal V,\delta,q_0,F),\qquad \delta:Q\times\mathcal Vharpoonup Q.CodeStructured Decoding: Token Masks From Schema Automata code witness 1assert allowed(0) == ["{"]DemoStructured Decoding: Token Masks From Schema Automata predictionManipulate one control and predict the visible change.

ConceptLearner lens

Structured Decoding: Token Masks From Schema Automata

What is the smallest example that makes Structured Decoding: Token Masks From Schema Automata click without losing the math?

Mode questionCan I say the mechanism back in one sentence before I reveal anything?

Start with the prediction checkpoint, then compare the reveal to the mental model.

Take this move

Study modes

Keep the object fixed; change the lens.

01PredictCommit before reveal.02ExplainName the invariant.03Ground2 source links nearby.04ExperimentChange one knob.05CarrySave the next question.

Route back through the notebook

Carry the same object through intuition, math, code, and demo.

4/4 sections ready

Carry inDecoding & Sampling: Temperature, Top-p & Inference-Time Control

Bring the mental model from Decoding & Sampling: Temperature, Top-p & Inference-Time Control; this page will reuse it instead of restarting from zero.

Work hereStructured Decoding: Token Masks From Schema Automata

How a schema automaton or parser state turns next-token logits into constraint-valid generation by masking invalid continuations, while leaving truth and task success outside the formal guarantee.

Carry outRetrieval-Augmented Generation: External Memory for Generation

The next edge should feel earned: use the demo prediction here before following Retrieval-Augmented Generation: External Memory for Generation.

After The First Pass

Turn the concept into an inspected object.

The lower panels are one second act: keep the object fixed, inspect it visually, check source boundaries, practice transfer, then attach the research question.

ConceptStructured Decoding: Token Masks From Schema AutomataLLM Systems

01MechanismInspect motionSee how the idea changes form before adding more explanation.02VisualChoose a cueBind one visible mark to one mathematical role.03SourcesCheck boundary2 source links attached to the object.04ClaimAudit evidenceTreat the page claim as something to verify.05PracticeAttempt transferWrite before feedback so the model has something to repair.06RoomAsk groundedAttach the question to the same exact object.

Mechanism Storyboard

See the idea move before the page explains it

How a schema automaton or parser state turns next-token logits into constraint-valid generation by masking invalid continuations, while leaving truth and task success outside the formal guarantee.

Demo notes open01 / Intuition

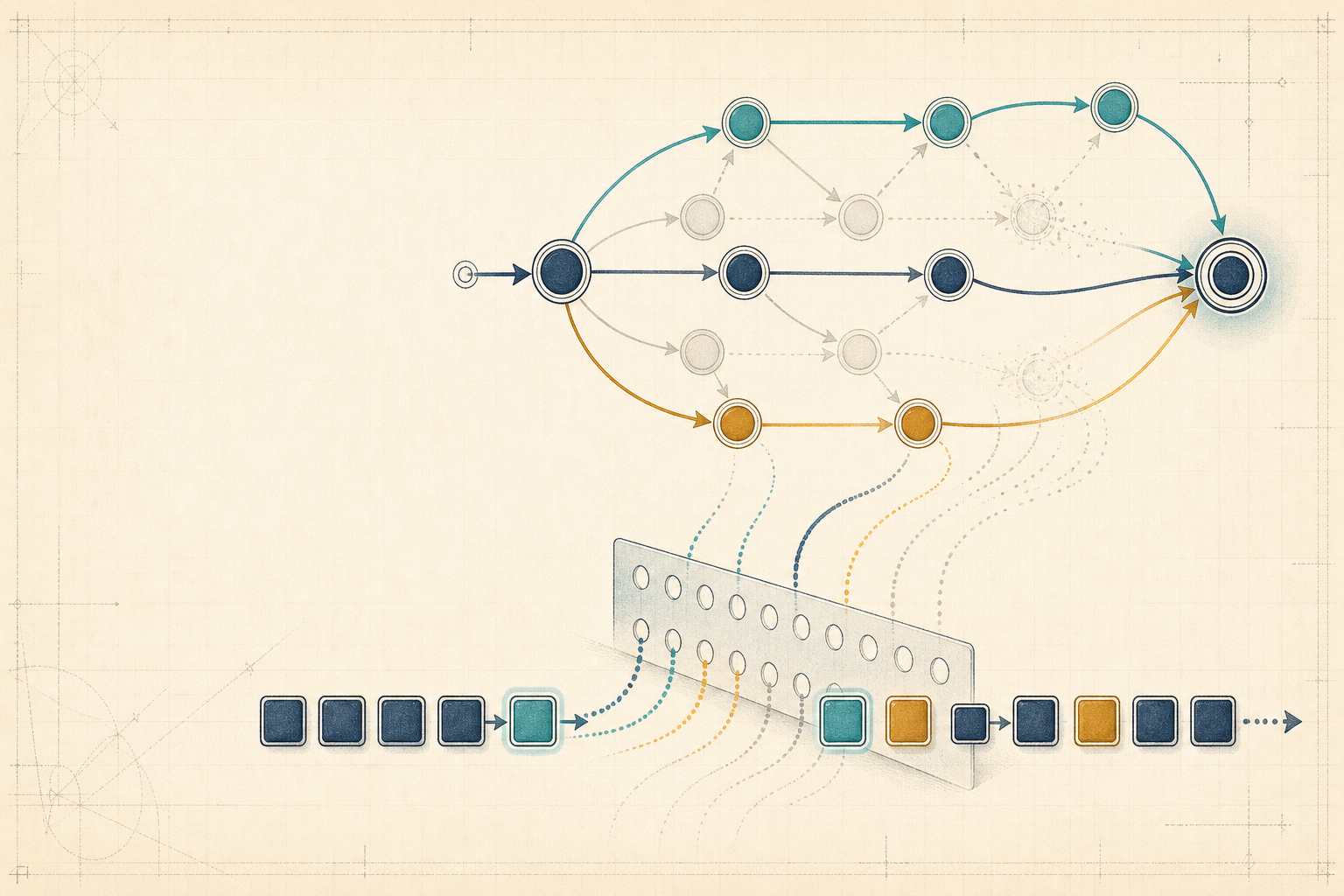

Editorial systems illustration of an automaton gating valid token paths.
